You notice the problem the moment the shower starts acting stubborn. The tub fills when you want the shower, the hand sprayer feels weak, or the diverter leaves a drip that never quite goes away. In a lot of Fraser, Warren, Sterling Heights, and Macomb County homes, that kind of “small” plumbing issue is usually where a simple fixture job turns into a real plumbing decision.
Shower diverter installation looks straightforward until you find out the old spout doesn't match the new one, the wall depth is off, or the valve behind the tile is older than the finish on the bathroom. That's why homeowners, property managers, and even real estate agents need a practical read on what works, what doesn't, and when the job crosses into code-sensitive territory.
Table of Contents
- Why Proper Shower Diverter Installation Matters
- Understanding Your Shower Diverter Type
- Tools and Materials Needed for Installation
- Installing Your Shower Diverter Step by Step
- Testing and Leak Verification After Installation
- Common Installation Mistakes and How to Avoid Them
- When to Call a Professional Plumber
Why Proper Shower Diverter Installation Matters
A diverter that looks fine on day one can still create trouble later if the fit is off by a little or the seals aren't seated right. The usual story is simple. Someone replaces the part, runs the shower, sees water switching normally, and assumes the job is done. Months later, there's a slow drip, a weak shower stream, or moisture showing up where it shouldn't.
That matters because diverters sit inside a plumbing system that's supposed to move water cleanly from one outlet to another without crossover or waste. The U.S. EPA says the national standard for bath and shower diverters allows 0.1 gallons per minute before life-cycle testing and 0.2 gallons per minute after testing, and the agency ties those leak rates to about half a gallon and one gallon of water wasted during a typical shower, respectively. Those numbers are a reminder that even small defects matter when a diverter is used every day. EPA WaterSense guidance on bath and shower diverters
Practical rule: if a diverter leaks, crossover leakage, or trim that never sits right, the problem usually started at installation, not at the faucet handle.
What most basic guides leave out
Most consumer advice stops at “turn off the water and thread it on.” That skips the parts homeowners wrestle with, like whether the existing shower setup can safely support the new part, whether the valve needs anti-scald protection, and whether unused ports are properly capped. Those details matter more in older Michigan homes, where tub-and-shower combos are common and the plumbing behind the wall may have been changed more than once.
There's also the code side. The 2021 Uniform Plumbing Code treats bathtubs, jacuzzis, hot tubs, and showers as high hazard for backflow prevention, and handheld or flexible fixtures that could be submerged need separate atmospheric vacuum breakers in some setups. That's not just paperwork. It changes how a diverter install should be approached when the wall is opened up or the fixture layout is unusual. 2021 Uniform Plumbing Code diverter and backflow provisions
For a homeowner in Fraser or anywhere in Macomb and Oakland County, the question is simple. Is this a clean swap, or is it a project that needs a licensed plumber because the wall, the valve, or the code requirements make it more complicated?

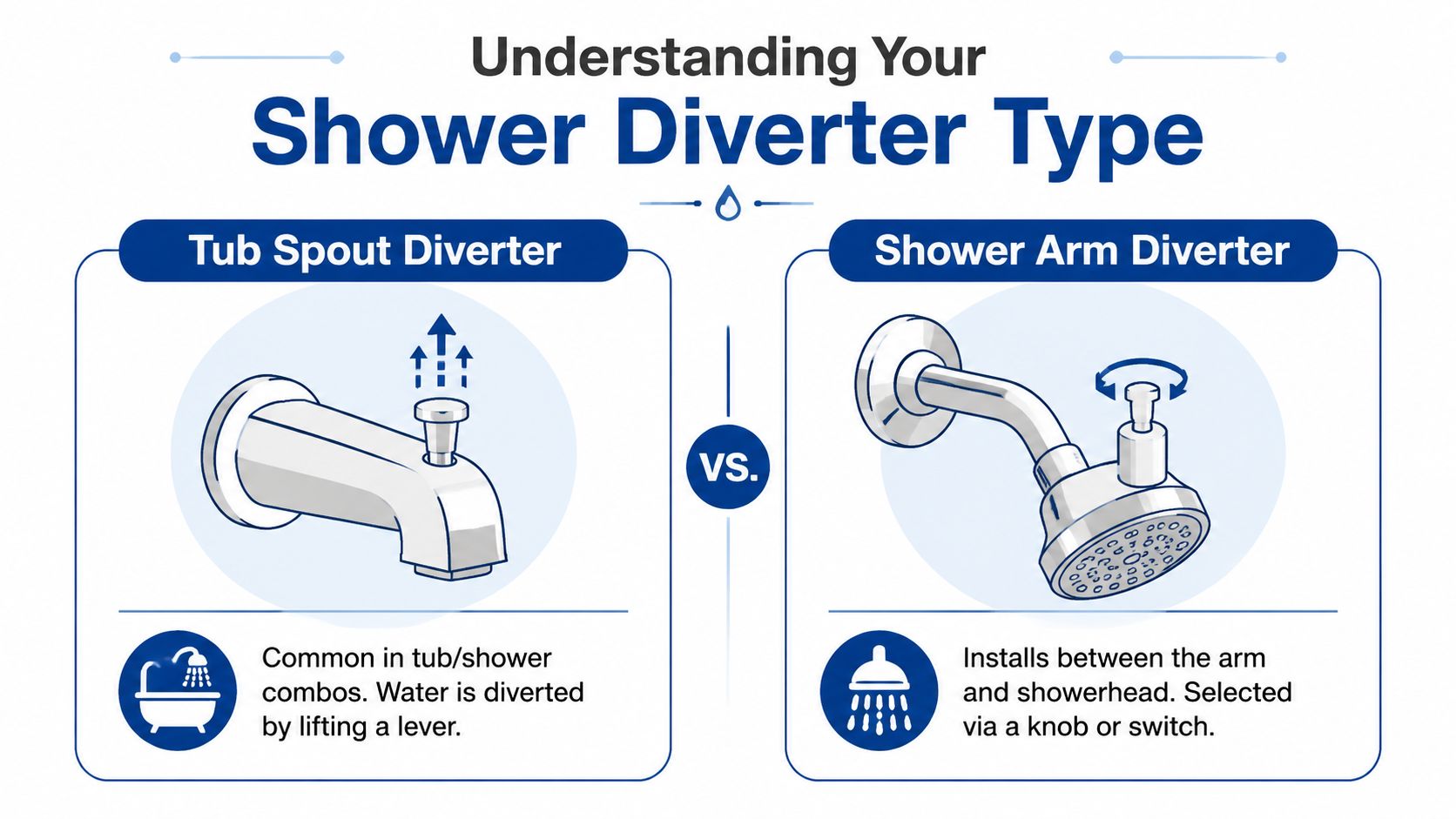

Understanding Your Shower Diverter Type
Not every diverter lives in the same place, and that's where a lot of wrong-parts problems start. The two most common categories in Michigan homes are the tub-to-shower diverter and the shower-head diverter. The first usually controls water between the tub spout and the showerhead. The second usually sits inline near the shower arm and switches between a fixed shower head and a handheld unit. AHS diverter valve overview
Tub spout diverters
A tub-spout diverter can be a slip-on model secured by a set screw, or a threaded model that comes off by wrenching the spout from the pipe stub-out. The physical connection matters more than people think. If you buy the wrong style, the new part may look right but still refuse to seat properly.
In real homes, especially older ones, I look at how far the pipe projects from the wall and whether the connection surface is clean. A slip-on model depends on that projection being within the manufacturer's range, while a threaded spout depends on the threads being in good shape and free of old sealant or mineral buildup.
Shower arm and in-wall diverters
A shower-head diverter sits where the shower arm meets the showerhead or handheld. These are common when homeowners want a handheld spray without changing the whole valve system. In-wall diverter rough-ins are more involved. They're about valve body placement, port alignment, and finished-wall depth, not just trim appearance. Danze rough-in manual example
If the diverter body is hidden behind the wall, the trim can look perfect and still fail if the rough-in depth or port spacing is wrong.
That's why identifying the type first saves time, money, and a lot of frustration. The replacement part has to match the connection style, the wall setup, and the way the fixture is used.
Tools and Materials Needed for Installation
Good preparation keeps a diverter job from turning into a mess. You do not need a truck full of specialty tools for a simple tub-spout swap, but you do need the right basics on hand before you start. If you have to run to the store halfway through, that's when stripped threads, water drips, and rushed decisions happen.
For most jobs, I'd have these ready:
- Adjustable wrenches, for loosening or snugging threaded parts without forcing them.
- Screwdrivers, since many slip-on spouts use a small set screw.
- PTFE tape, for threaded connections that need a clean seal.
- Replacement diverter, matched to the exact connection style you're installing.
- Tub-spout removal tool, if the old spout is stuck or corroded.
- Gloves and eye protection, because old sealant, rust, and debris don't stay polite once the fitting comes off.
- Drop cloths, so you're not dragging grime across a finished bathroom floor.
If you're opening a wall for a rough-in, the list gets more specific. You may need solder, flux, replacement caps for unused ports, and the patience to check alignment before the wall gets closed back up. That's where a lot of remodels go sideways, because the rough-in looks “close enough” until the trim won't seat flush.
Before any of that, shutoff access matters. If your main shutoff is stiff, corroded, or hard to find, deal with that first. A clean diverter install starts with knowing you can control the water. Main water shut-off valve replacement guidance

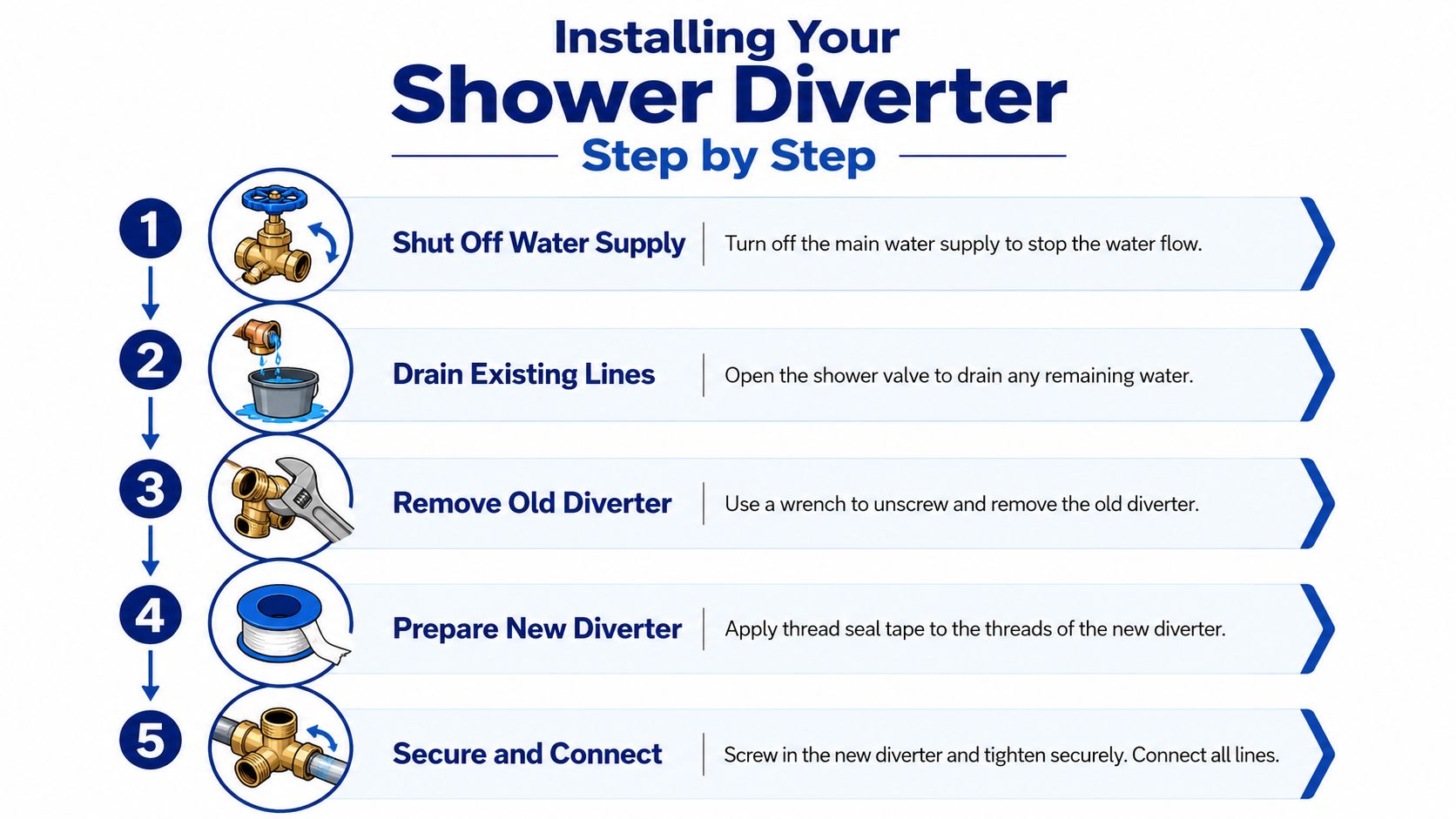

Installing Your Shower Diverter Step by Step
The cleanest installs start with patience, not force. Shut off the main water supply, then open the fixture and drain the remaining water out of the line. That sounds basic, but it keeps you from getting sprayed when the old part comes off and helps you see what the plumbing is doing.
Remove the old part the right way
A slip-on tub spout usually comes off after loosening the set screw. A threaded spout usually needs to be unthreaded carefully with a wrench. If it fights you, don't muscle it. Corrosion and old sealant can make a fitting feel welded in place, and forcing it is how spouts crack and internal parts get twisted.
Once the old piece is off, clean the pipe stub-out. Old tape, mineral scale, and sealant residue can keep the new diverter from sealing properly. That cleanup step is boring, but it's one of the most important parts of the job.
Install the new diverter with a clean seal
For threaded connections, wrap the threads with 3 to 4 turns of PTFE tape, then start the fitting by hand. That hand-start is important. It helps the threads seat straight before you finish with a small wrench. Overtightening is a common failure point because it can crack the spout or deform the internal parts.
For slip-on models, the pipe has to project the distance the manufacturer calls for, which is often somewhere around 1 to 2-7/8 inches depending on the model. That projection affects how the diverter sits and whether the trim lines up.
Pay attention to rough-in details on hidden valves
In-wall diverters depend on correct port spacing and wall depth. One manufacturer example calls for a 3 1/4 inch center-to-center relationship from discharge port to inlet port, with the finished wall landing where the plaster guard or wall reference says it should. Misalignment here can lead to binding, crossover, or trim that won't sit right. Danze rough-in manual example
After everything is assembled, make sure the handle moves freely. A diverter that binds on the bench usually won't improve once water pressure is back on.
Testing and Leak Verification After Installation
A diverter isn't really installed until it passes a water test. I always want water back on slowly, because that makes problems easier to spot before they turn into a soaked wall or a callback. Check each position one at a time, tub spout flow, shower flow, and handheld if the setup has one.
The goal is simple. Water should go where you selected, and the unused outlet should stay dry. If you see drips from the wrong port, a weak stream, or water sneaking both directions, you're looking at crossover or a seal problem.
The EPA's measurable standard gives homeowners a useful reference point. The national plumbing standard for bath and shower diverters allows 0.1 gallons per minute before life-cycle testing and 0.2 gallons per minute after testing, and the EPA says those leak rates equal about half a gallon and one gallon of water wasted during a typical shower, respectively. The agency also notes that some states, including California, allow only 0.01 gallons per minute initially, which is much stricter than the national baseline. EPA WaterSense guidance on bath and shower diverters
Practical takeaway: if a diverter drips under pressure or doesn't fully shut off one outlet, don't assume it will “settle in.” Recheck the fit before you close walls or call the job finished.
A simple homeowner test is to run the shower at full flow for a few minutes, then switch through each setting and watch the joints, the spout, and the unused outlet. If the setup is new and still leaking, the problem is usually a seal, alignment, or compatibility issue, not a “break-in” issue. That's the point where a plumber should inspect it before damage spreads.
Common Installation Mistakes and How to Avoid Them
The same mistakes show up over and over on diverter jobs, and they're usually not dramatic. They're small misses that add up. A washer sits crooked. The body faces the wrong way. The fitting gets tightened until the threads complain.
The mistakes I see most
- Missing or misaligned washers, which can leave the diverter from sealing fully.
- Overtightened fittings, which crack plastic parts or distort brass pieces.
- Incorrect body orientation, which causes bad flow direction or crossover.
- Unused ports left uncapped, which can create internal bypass and weak shower pressure.
- Incomplete leak testing, which lets a hidden problem stay hidden until after the bathroom is back in service.
Retrofits can be trickier than new installs because the old valve may not have the safety features a modern setup needs. A diverter shouldn't be treated like a stand-alone fix if the rest of the shower system is outdated. Guide to diverter types and installation tips
The other thing homeowners underestimate is trim fit. If the escutcheon doesn't bottom out right or the handle travel feels rough, that's often a sign the rough-in depth or alignment is off. Those are the jobs that look almost right and still create callbacks.
One more thing. A leaking faucet handle often gets blamed on the diverter, but sometimes the two problems share the same worn internal parts or installation issues. If you're seeing both symptoms, it's worth checking the whole fixture stack instead of swapping one piece at a time. Leaking faucet handle repair guidance
When to Call a Professional Plumber
Some diverter swaps are reasonable DIY work. A simple, accessible tub-spout replacement with matching parts is usually manageable for a careful homeowner. Once the job involves an in-wall rough-in, mixed materials, or a pressure-balance or thermostatic mixing valve, the project changes.
That's also where code and safety start mattering more. The 2021 Uniform Plumbing Code classifies bathtubs, jacuzzis, hot tubs, and showers as high hazard for backflow prevention, and some fixture layouts need separate atmospheric vacuum breakers or self-closing diverters. If the home has older plumbing, or if the shower has been remodeled in stages, it's smart to have a licensed plumber confirm compatibility before anything gets closed up. 2021 Uniform Plumbing Code diverter and backflow provisions
In Fraser, Sterling Heights, Clinton Township, and the surrounding Macomb and Oakland County communities, I'd especially recommend professional help when the job sits inside a full bathroom update, frozen-pipe season has already stressed the plumbing, or the home has mixed copper, PEX, or older galvanized sections. Those are the installs where a clean fix now prevents bigger bathroom plumbing, pipe repair, or leak detection problems later.
For homeowners, property managers, and small businesses who want the work done right the first time, a licensed plumber can verify the diverter, the valve, the trim depth, and the rest of the fixture system together. Kitchen and bathroom plumbing repair and install
